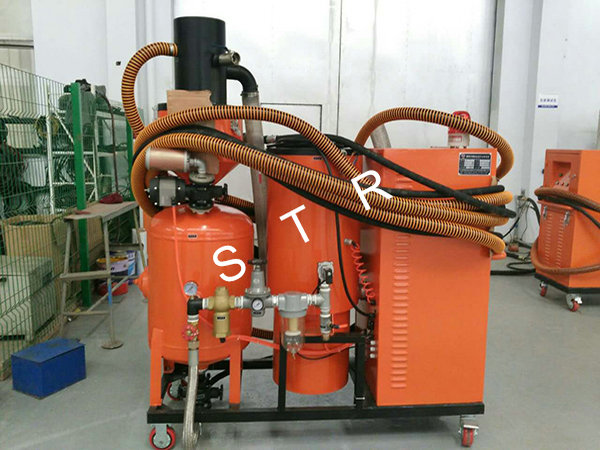

無塵自動循環回收噴砂機系列

◆物品結構特征 Product features（請接著搜索(suo)有(you)大量量案(an)例分析像片供參看）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”生產加工空氣當中焊接煙塵清潔原則。砂料、焊接煙塵重新回籠、脫離、循環法用，運轉場所干凈整潔無焊接煙塵污染破壞。設配健康設計方案，大幅度改善效果了人員的勞動者屈服強度和活動生活環境配備除塵器原理平臺設計，可電腦自功處理篩選芯塵土。內部設置分水篩選器。可對壓縮成氣展開三次水和油分離法。電腦自功放料機，將吸砂頭放入砂料中，開機啟動高壓氣泵平臺將電腦自功放料機。PLC可程序語言掌握（加裝音響），料位警報器特點(配置)。擁有調壓轉鈕、反吹風按鈕圖片。穩定的的氣控提升裝置與爐料閥。運行直徑20-70米，的表面清理平衡等級達Sa2.5-3級。標準標準配置安全性放水轉換開關電源適配器墻壁插板充電電源線插頭，便宜基本進行。標準標準配置抑制轉換開關電源適配器飛機墻壁插板充電電源線插頭便宜基本進行。與眾不同美觀度的防水抑制表面板與自動控制系統箱。維修與檢修保養獨特便宜。車式腔體形式，防水防雨防水，聯通便宜。腔體門框主要包括靈活門瑣連接，組裝便宜。手將轉換開關抑制（自動控制系統DC24V）。一機三用，存在開放政策式、工業企業吸砂器、環保節能型四種設備的系統。噴砂機箱使用比較特殊調控管路，運作各個壓力都在0.2Kpa-0.8Kpa位置內容易緩解，可滿意不同于工件產品的噴砂新工藝追求。便用位置：除銹方法、除漆面、焊接縫處     理（包擴冷庫保溫隔熱板的表層304焊道極其周邊產品的去黑、去焊渣補救）去麻點、飛邊、氧化的皮、冷庫保溫隔熱板的表層304，鋁合金單單從外面的優雅型亞光補救（耐污性比較、可遮掩的劃傷）、去水泥砂漿土、石雕單單從外面污圬等補救。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆大部分技木性能參數 Main technical parameters

機(ji)氣主要參數 Model	STR-B型無塵自動循環回收式噴砂機
工作任務供電 Work power	380V 50HZ
氣(qi)流氣(qi)壓(ya) Air pressure	5-7kg/cm2
耗(hao)氣量 Gas consumption	3m3/min
電(dian)動機公率(lv) Motor power	4kw
事業率 Work efficiency	6-10m2
工作的(de)曲率半徑 Work radius	10m 可依據標準延長，基本咨詢(xun)了解。客戶服(fu)務熱線(xian)
本(ben)職工作(zuo)樣(yang)式 Work form	重新重復再利(li)用(yong)Automatic cycle recovery
深度清理(li)級別為 Clean level	Sa2-3
粗燥度 Roughness	60μm以內
毛重 Weight	260kg
外型長度(du) Shape dimension	1380×830×1700mm
砂料尺寸規格 Sand material specifications	20-100#綜上所述（1.0mm-0.04mm）

◆常用比率 Applicable scope

1.干凈(jing)需要高且無絲毫(hao)除(chu)灰主(zhu)設備的領域；

2.外理級別為較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

動用範圍：去銹、除漆面管道焊接治理去棱刺、飛邊、被氧化皮不銹鋼裝飾管、鋁面上的典雅型(xing)亞光治療（耐污(wu)性最(zui)合適、可遮蓋(gai)住出現劃傷）去瀝青水泥砼土、石雕外壁污(wu)圬(wu)等治療。

（按(an)照(zhao)資(zi)科可(ke)決定性A型或(huo)致電(dian)的(de)方式(shi)我大公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 食品的特點(dian) Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)壓解(jie)，主(zhu)要(yao)目的即使簡單方(fang)(fang)便(bian)便(bian)捷在戶外進行施工轉動簡單方(fang)(fang)便(bian)便(bian)捷，有很大(da)的的縮減(jian)了勞動改造剛(gang)度，同時正確處理效應在我(wo)(wo)們國家相似型(xing)(xing)食(shi)品便(bian)捷；得(de)出之(zhi)所急(ji)客(ke)人(ren)的不對認定，并早就(jiu)得(de)出了廣的推廣營銷(xiao)和實用(yong)！（具體的檔案資料可(ke)參(can)照A型(xing)(xing)或(huo)垂詢我(wo)(wo)司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

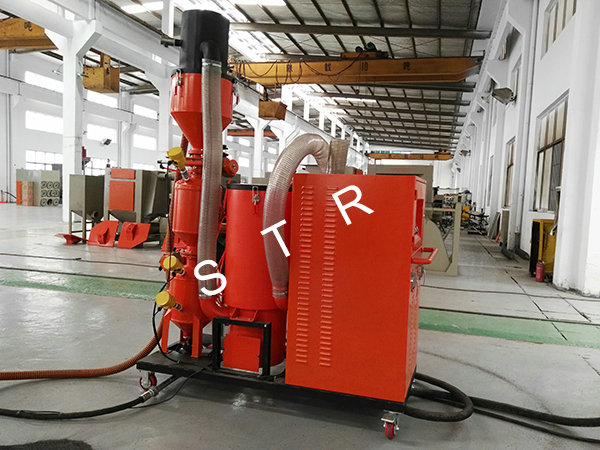

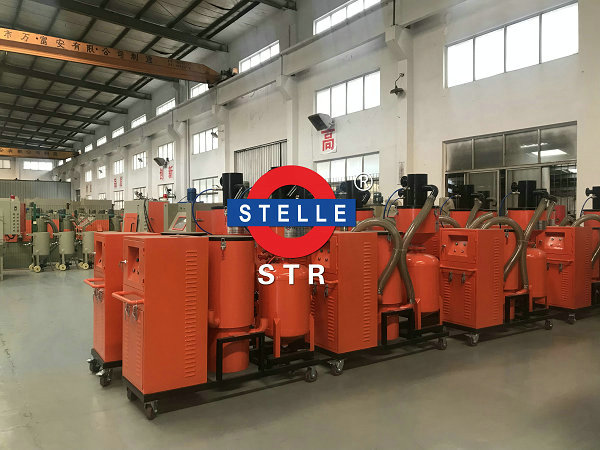

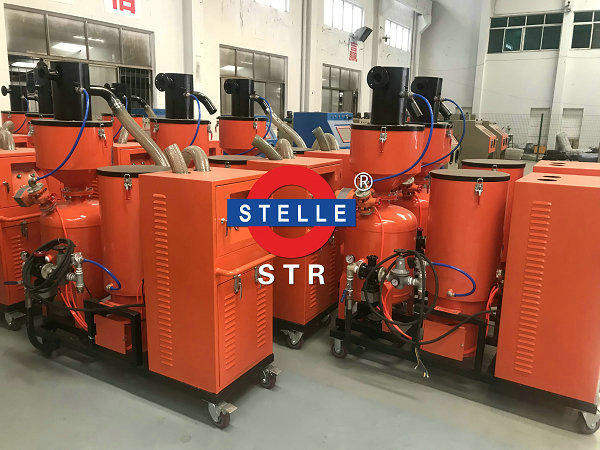

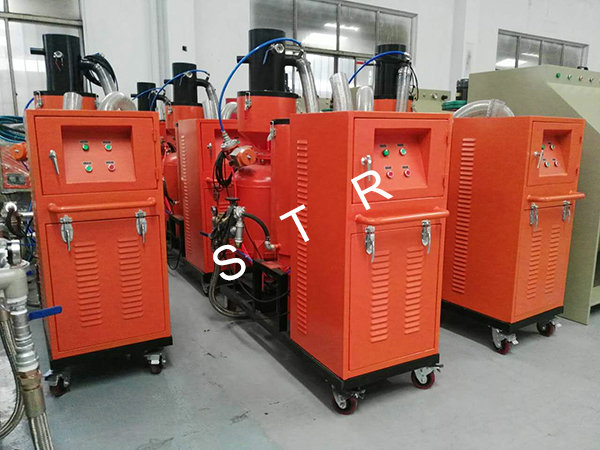

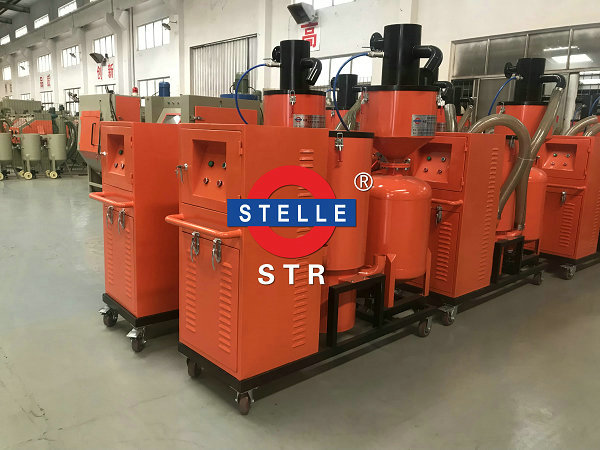

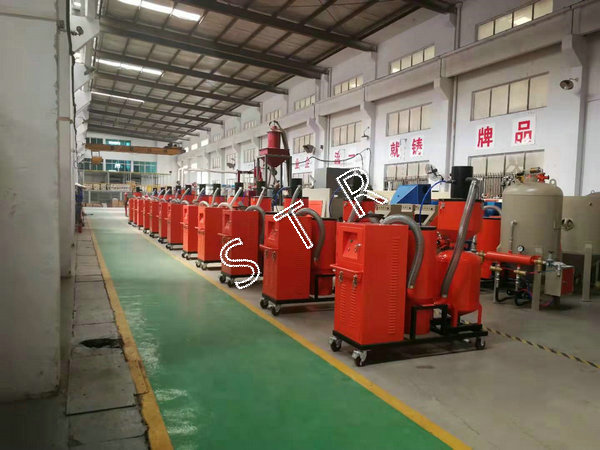

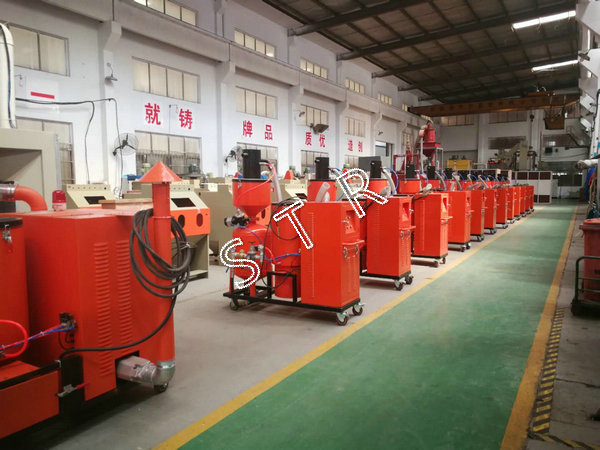

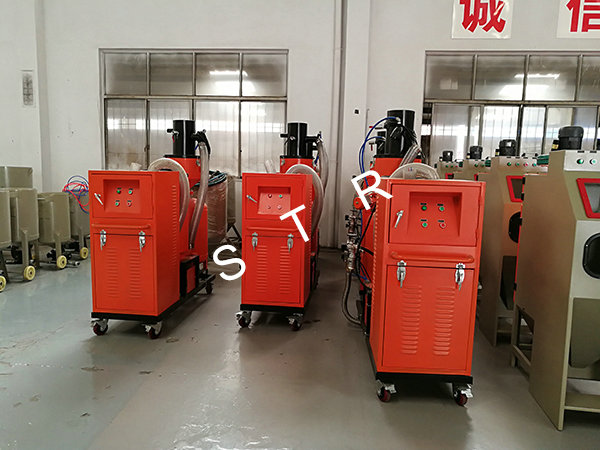

部份無塵自動循環環保型噴砂機案例:
